-ACT functions are included in the standard package firmware, there is no dedicated firmware for ACT.

- "Activation" in ACT means to change the value of SP5-781-00X (saved on the NVRAM).

-The latest ACT version built into the firmware can be confirmed using SP5-780-002.

-Activation status information is saved on the NVRAM and also can be backed up to the HDD or the Operation Panel Unit. If the NVRAM is replaced, the activation status information can be manually restored from the HDD or the Operation Panel Unit by executing SP5-780-20X

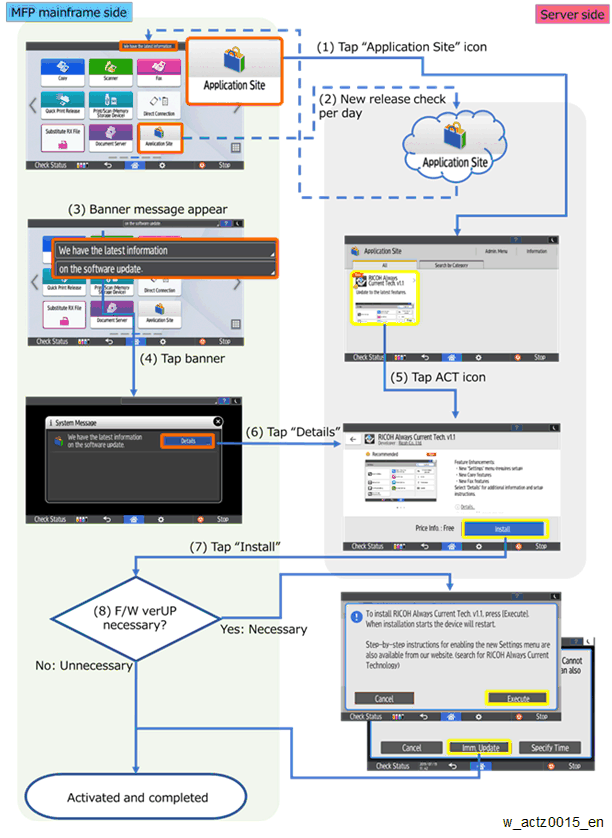

StepDescription
(1)<In the case of Starting from the Application Site icon>

Tap Application Site icon and then the Browser NX is launched and the web page of Application Site appears. Go to step (5).

(2)

<In the case of Starting from the Banner message>

The machine checks the Application Site server daily for new version of ACT on Application Site. If there is a new version released on Application Site, a banner message is displayed on top of screen. Go to step (4).


(3)
(4)A system message is displayed if the banner notification is tapped. Go to step (6).
(5)When the icon of the version to be activated tapped, the details screen for that version is displayed. Go to step (7).
(6)If the "Details" button of the System message tapped, Browser NX is launched and the page for the specified version is displayed. Go to step (7).
(7) Tap the "Install" button and go to step (8).
(8)

 Check if a firmware update is necessary.

<If not necessary:>
Tap the "Execute" button and then the machine will reboot automatically. Activation will be completed after the reboot.

<If necessary:>
Tap the “Execute” button to display the firmware update confirmation screen. Then tap the “Immediate update” to start downloading the firmware files. When the download process and the firmware update are completed, the machine will reboot automatically. Activation will be completed after the reboot.



Only effective for v1.1, activation is not performed with the firmware update simultaneously. It is necessary to start again from the step (6) after package firmware update completion.
