ACT feature can be activated in two ways.
1. Activate on the Application Site
On the Application Site, refer to the "Install the latest features on the main unit" page, in the User Guide.
－ It cannot be deactivated by the customer.
－ Both on the Application Site and the User Guide, the activation of ACT, referred as “Install”.
－ When there is a newer version on the Application Site, the previous version will no longer visible.
2. Activate using the SP mode
1) Install the package firmware that corresponds to the ACT version you want to activate.

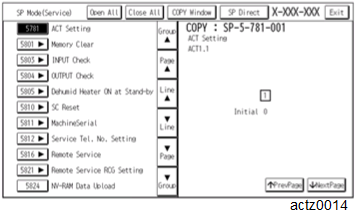

2) Each ACT version can be activated using SP5-781-00X (0: Disable, 1: Enable). After changing the value, power OFF/ON the machine.
－ Make sure to activate after confirming the version is already published on the Application Site.
－ In order to activate, package firmware what is containing the ACT version must be installed. (e. g. ACT version 1.1 is contained package firmware version 2.23 or later).
