ARDF DF3090
Replacement and Adjustment
Belt and Rollers
Feed Belt
Original feed unit (
Original Feed Unit
)

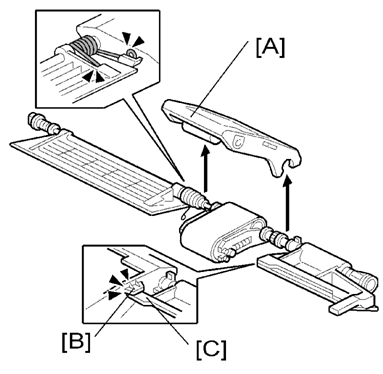

Feed belt cover [A] (spring×1)
When reattaching the feed belt cover, make sure that the projection [B] of the feed belt cover is on the guide plate rear [C].
Belt tension unit [D]
Feed belt [E]
