1. Remove the jogger unit. (Jogger Unit Removal)

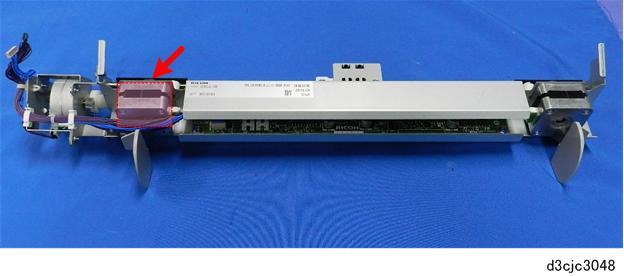

  2. The rear fence motor is on the rear end of the unit.
  3. Remove the top cover.

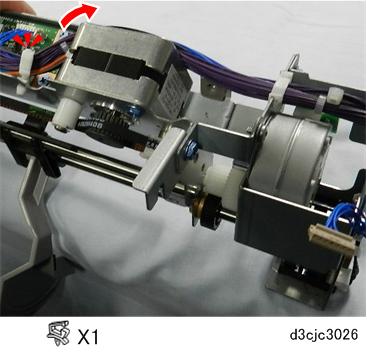

  4. Open the clamp and free the harness laying on top of the motor

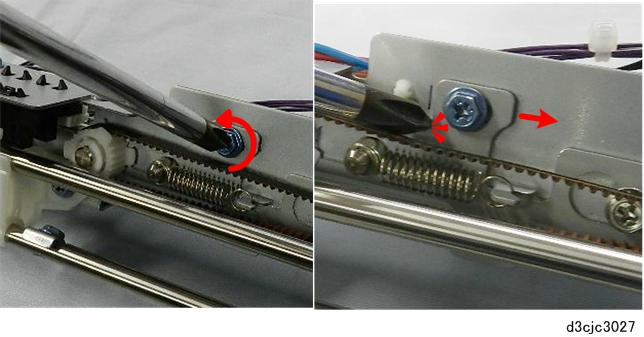

  5. Loosen the tension bracket of the rear fence drive belt. This will create some slack in the belt so it is easier to remove.

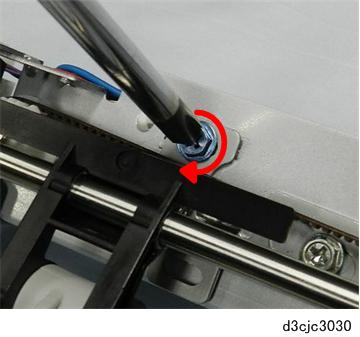

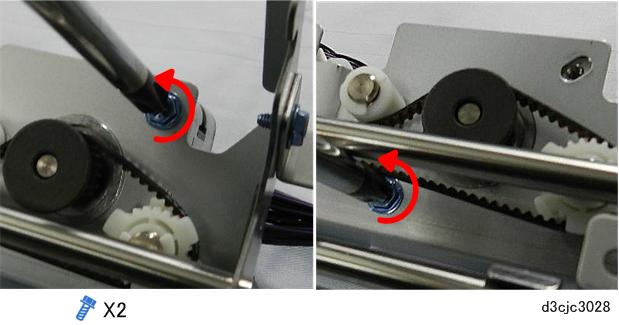

  6. Disconnect the motor.

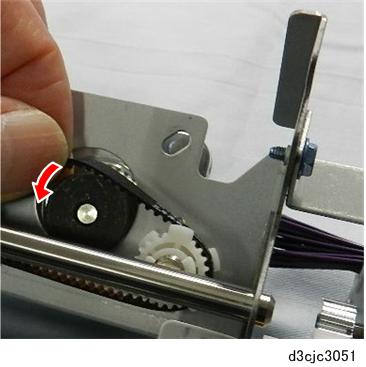

  7. Disconnect the drive belt.

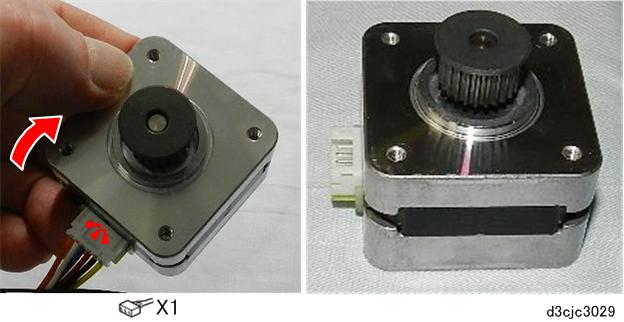

  8. Pull the motor out and disconnect it.
  9. Be sure to tighten the belt tension bracket after you reinstall the motor.
