1. Remove the front door and all covers, except the left lower cover and top cover (Covers)

    • Be sure to lower the shift tray by pulling the gear toward you. The shift tray must be down.

  2. Remove the following parts:

    Left stay [A] (x 2)

    Shift tray mounting plate [B] ( x 2)

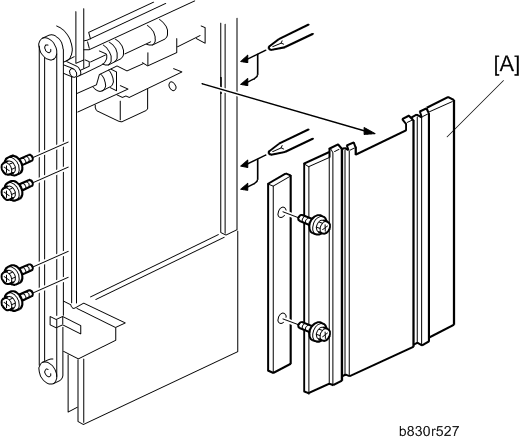

  3. Remove the end fence [A] and plate. ( x8, x6, x2)

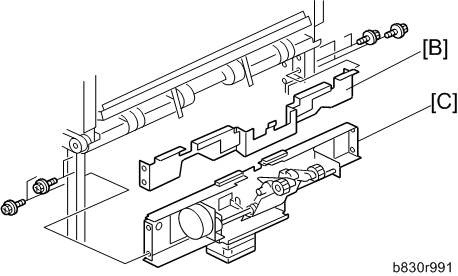

  4. Remove the Cover [B] ( x 4) and the motor stay [C]. ( x4, x7, x4)

    • Make sure the motor and sensor connectors are disconnected before removing.

  5. Remove the Drag roller motor unit [A]. (Bearing x1, x2, x1)

  6. Remove the Drag roller motor. ( x2)

  7. Remove the Drag roller HP sensor unit [B]. ( x1)

  8. Remove the Drag roller HP sensor. ( x1, Pawls x3)

  9. Remove the Paper height sensor – shift/Z-fold unit [C]. ( x2, x2)

  10. Remove the Paper height sensor shift/Z-fold. ( x1, Pawls x3)

  11. Remove the Drag drive motor unit. ( x4, x2)

  12. Remove the Drag drive motor [D]. (x2)
