Paper jam occurred in the paper path between Tray 1 and around the registration roller

The paper jam (such as J031, J054, J057, J069) occur in the paper path between Tray 1 and around the registration.

Clean the registration sensor 1 and opposing part.

1. Open the front cover.

   MP 501/601: Push the button [A] and open the front cover [B].



   SP 5300/5310: Open the upper cover [A], and then open the front cover [B].



2. Pull out the PCDU [A].

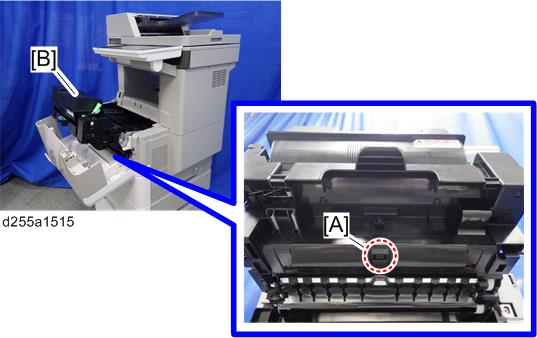

3. Clean the registration sensor 1 [A] with a damp cloth from the backside of the PCDU [B].

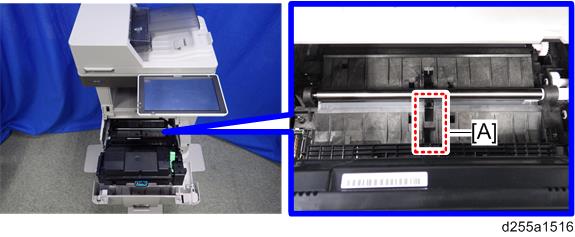

4. Clean the opposing part [A] of the registration sensor 1 with the damp cloth.
