Cleaning the Paper Tray Unit of Main Machine

Pull out the Tray 1, and clean the side fence and the end fence.

Pull out the Tray 2, and clean the side fence and the end fence.

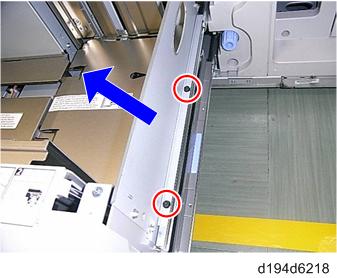

Remove the screw on Tray 1, and remove the tandem tray (right) with raising it. (x2)

Clean the Pick-up roller [A] and guide plate [B] on Tray 1.

Remove Tray 2 with raising it, and clean the pick-up roller [A] and guide plate [B].

Open the vertical transport guide plate [A] and clean up all the guide plates on it.

Reassemble the unit.
