Main Motor

Remove the bottom cover. (Bottom Cover)

Open the top cover.

Remove the gear [A]. (x1)

Remember the position of the gear [A]. Put the gear back in the correct position after replacing the motor.

Remove the gear [A]. Remove the bracket [B]. (×3)

Remember the position of the gear [A]. Put the gear back in the correct position after replacing the motor.

Remove the T-shaped stopper [A].

Remember the position of the T-shaped stopper [A]. Put the stopper back in the correct position after replacing the motor.

Remove the bracket [A]. (×2, ×2)

Remove the main motor [A] with its bracket. (×3)

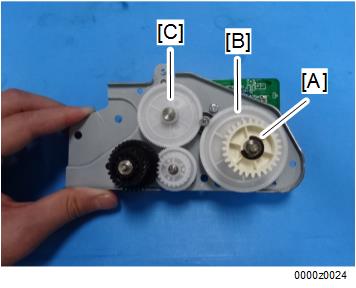

Remove the gears [A], [B], and [C]. (×1)

Remove the bracket [A] from the main motor [B]. (×3)
