Registration Roller (Driven)

Gear Unit (Gear Unit)

Registration Sensor (Registration Sensor)

Guide [A]

E-ring at both sides of the registration roller (driven) (×2)

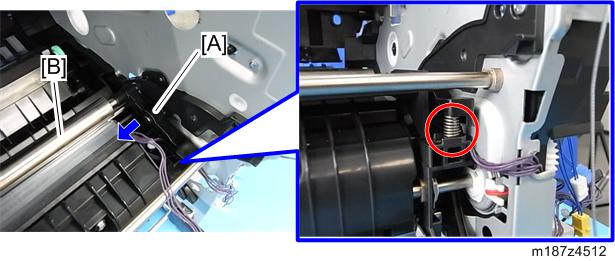

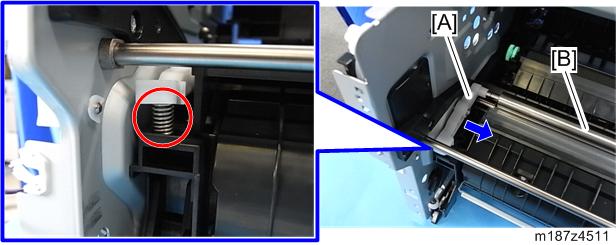

Remove the spring of the arm [A], slide the arm [A] to the right, and detach the registration roller (driven).

Right Side

Left Side

Arm [B] from the registration roller (driven) [A]
