Installation Procedure

Open the rear upper cover [A].

Insert a flathead screwdriver into [A] to release the hook on the inside of the controller cover [B].

Release the hook by opening the right side of the cover, and then remove the cover [A] by rotating it in the direction of the blue arrow.

Insert a flathead screwdriver in the order of , , and to release the three hooks of the rear left stay [A].

Remove the rear left stay [A].

Push the button [A] and open the front cover [B].

Release the hook [A] of the right upper cover [B] by opening the cover in the direction of the arrow.

Remove the right upper cover [A] by inserting a flathead screwdriver into [B].

Remove the bracket [A].

Install the four stud stays as shown below.

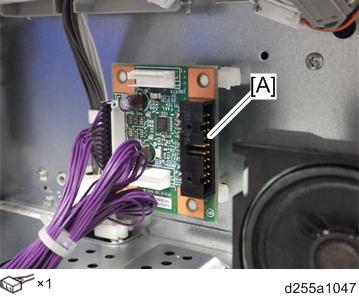

Install the optional counter interface board [A] on the four stud stays.

Connect the harness (13 pins) to CN3 [A] on the optional counter interface board and CN112 [B] on the BiCU.

Fasten the harness with the clamp [A].

Bind the harness with the harness bind [B] as shown below.

Connect the harness from the optional counter device to CN4 [A] on the optional counter interface board.

Remove the knockout [A] of the rear left stay [B] with a pair of nippers. Then pass the harness which is connected to the optional counter interface in the previous step.

Reassemble the machine.
